Ultra-Low Freezer

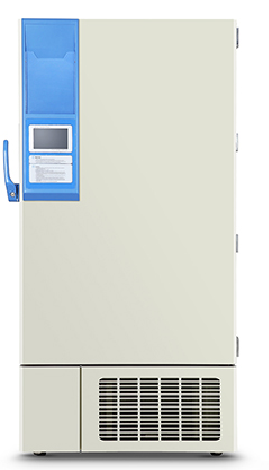

IMI Freezer -86°C ultra low temperature freezer brings super updates in ultra low temperature freezer series. The new structure of the deep freezer for laboratory and medical comes with 2 independent inner doors. The optimized foaming insulation inside the doors provides better temperature performance. This medical freezer/ lab freezer is specially designed to meet the demands for long-term and safe storage of the high-valued medical and laboratory materials.

High configuration control system

The ultra low freezer has a new look 7 inches LED touch screen display, giving you more user-friendly and convenient interface. And it makes sure the temperature display accurately in 0.1℃. And you are free to set the inside temperature from -40°C~-86°C.

Safety alarm system

This ultra cold freezer provides 6 types of audible and visible alarms. The safety alarm system includes high or low temperature alarm, low battery alarm, door ajar alarm, power failure alarm, filter blocking alarm, and system failure alarm.

Exquisite structure design

Medical and laboratory deep freezer is designed with 2 independent inner doors with foaming insulation, which can ensure better temperature performance. The external material is made of high quality structure steel, while inner material is made of High quality galvanized steel sheet（optional 304 grade stainless steel）. And the storage structure is designed with 3 high strength SUS304 shelves, which is resistant to corrosion and easy to clean.

Features

  • India's leading manufacturer of ultra-low temperature freezers
  • Equipped with Embraco compressor and famous Germany brand EBM fans
  • Adopted CFC-free patent mixture refrigerant for fast refrigeration and ensuring environment friendly
  • PT-100 platinum resistance sensors for sensitively detecting the temperature changes
  • Lockable keyboard and password protected to prevent from adjusting parameters without authorizingEquipped with VIP Plus vacuum insulation panel in 130mm foaming insulation to ensure the stability of temperature
  • Designed with lockable front door with full height handle to prevent from unauthorized access
  • For safe storage, it allows machine startup delay and power off protection.
  • For the casters, it is fitted with 4 PCS casters and 2 leveling feet for easy moving
  • The optional configurations are warning lamp, smart temperature monitor system, temperature recorder, and CO2 back-up system
  • Certificate: CE certificate, ISO9001, ISO14001,ISO1348
Model IMIF600 IMIF500 IMIF400
Capacity(L)
678
528
398
Internal Size(W*D*H)mm
750*696*1286
585*696*1266
440*696*1266
External Size(W*D*H)mm
1090*1025*1955
930*1041*1947
785*1041*1947
Package Size(W*D*H)mm
1203*1155*2171
1035*1165*2158
890*1165*2158
NW/GW(Kgs)
330/435
286/363
237/272
Performance
Temperature Range
-40～-86℃
-40～-86℃
-40～-86℃
Ambient Temperature
16-32℃
16-32℃
16-32℃
Cooling Performance
-80℃
-80℃
-80℃
Climate Class
N
N
N
Controller
Microprocessor
Microprocessor
Microprocessor
Display
Touch screen
Touch screen
Touch screen
Refrigeration
Compressor
2pcs
1Pcs/2pcs
1Pcs / 2 Compressors optional
Cooling Method
Direct Cooling
Direct Cooling
Direct Cooling
Defrost Mode
Manual
Manual
Manual
Refrigerant
Mixture gas
Mixture gas
Mixture gas
Insulation Thickness(mm)
130
130
130
Construction
External Material
High quality steel plates with spraying
High quality steel plates with spraying
High quality steel plates with spraying
Inner Material
Galvanized steel sheet
Galvanized steel sheet
Galvanized steel sheet
Shelves
3(stainless steel)
3(stainless steel)
3(stainless steel)
Door Lock with Key
Yes
Yes
Yes
External Lock
Yes
Yes
Yes
Access Port
3pcs. Ø 25 mm
2pcs. Ø 25 mm
2pcs. Ø 25 mm
Casters
4+(2 leveling feet)
4+(2 leveling feet)
4+(2 leveling feet)
Data Logging/Interval/Recording Time
USB/Record every 1 minute / 365 days
USB/Record every 1 minute / 365 days
USB/Record every 1 minute / 365 days
Backup Battery
Yes
Yes
Yes
Alarm
Temperature
High/Low temperature, High ambient temperature
High/Low temperature, High ambient temperature
High/Low temperature, High ambient temperature
Electrical
Power failure
Power failure
Power failure
System
Sensor failure, Main board communication error, Built-in datalogger USB failure, Condenser overheating failure, Door ajar, System failure
Sensor failure, Main board communication error, Built-in datalogger USB failure, Condenser overheating failure, Door ajar, System failure
Sensor failure, Main board communication error, Built-in datalogger USB failure, Condenser overheating failure, Door ajar, System failure
Electrical
Power Supply(V/HZ)
220-230~/50
220-230~/50
Content
Rated Current(A)
9.3
6.57
5
Accessory
Standard
Remote alarm contact
Remote alarm contact
Remote alarm contact
Options
Chart recorder, CO2 backup system, Printer
Chart recorder, CO2 backup system, Printer
Chart recorder, CO2 backup system, Printer
