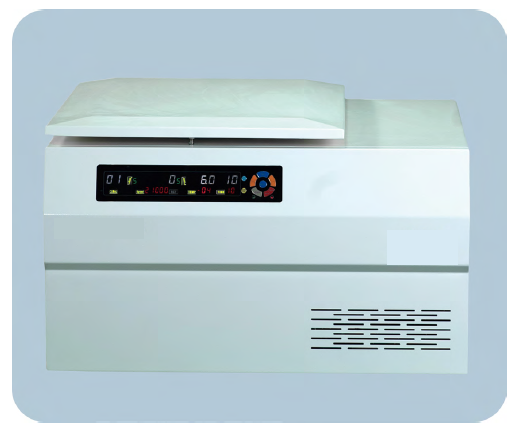

| Model | ICR-21K |
|---|---|
|
Max RPM |
21000rpm |
|
Max RCF |
30642×g |
|
Max Capacity |
4×750ml |
|
Timer |
1min ～ 99min |
|
Revolutions/min |
±10r/min |
|
Temp Range |
-20℃～ 40℃ |
|
Temp Accuracy |
±1.0℃ |
|
Voltage |
AC 220±22V 50Hz 15A |
|
Power |
1300W |
|
Noise Level |
≤ 60dB（A） |
|
Chamber Diameter |
φ420mm |
|
Dimensions (L x W x H) |
730×620×440mm |
|
Packaging Dimensions |
820×710×590mm |
|
Net Weight |
105kg |
|
Gross Weight |
122kg |
| Swing-out rotor with Multi pipe |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|
|
Capacity |
4×50ml/100ml |
8×50ml/100ml |
16×10/15ml |
24×10/15ml |
32×10/15ml |
|
Max RPM |
5500r/min |
4200r/min |
4200r/min |
4200r/min |
4200r/min |
|
Max RCF |
5310×g |
3100×g |
3100×g |
3100×g |
3100×g |
|
|
|||||
|---|---|---|---|---|---|
|
Capacity：4×750ml Max RPM: 4200r/min Max RCF ：3950×g |
Capacity：4×750ml （Biosafety lid） Max RPM：4200r/min Max RCF ：3950×g |
Adaptor |
a 4×1×500ml |
b 4×1×250ml |
c 4×3×100ml Round type |
|
d 4×4×50ml Round type |
e 4×4×50ml, Sharp type |
f 4×7×50ml Sharp type（ABS） |
|||
|
g 4×14×15ml Sharp type |
h 4×12×15ml Round type |
i 4×12×15ml Sharp type |
|||
|
j 4×12×10ml Round type |
k 4×24×5ml Blood tube |
|
|
|
|||||
|---|---|---|---|---|---|
|
Capacity：4×500ml Max RPM：4200r/min Max RCF ：3950×g |
Capacity：4×500ml （Biosafety lid） Max RPM：4200r/min Max RCF ：3950×g |
Adaptor |
a 4×1×250ml |
b 4×1×100ml Round type |
c 4×2×100ml Round type |
|
d 4×3×50ml Round type |
e 4×3×50ml Sharp type |
f 4×4×30ml Round type |
|||
|
g 4×9×15ml Round type |
h 4×8×15ml Sharp type |
i 4×12×10ml Round type |
|||
|
j 4×9×10ml High speed round type |
k 4×15×5ml Blood tube |
|
|
|
||||||
|---|---|---|---|---|---|---|
|
Capacity：4×250ml Max RPM：4200r/min Max RCF ：3850×g |
Capacity：4×250ml （Biosafety lid） Max RPM：4200r/min Max RCF ：3850×g |
Capacity：56×5ml （basket） Max RPM：4200r/min Max RCF ：3850×g |
Capacity：16×50ml （basket） Max RPM：4200r/min Max RCF ：3850×g |
Capacity：36×10m （basket） Max RPM：4200r/min Max RCF ：3850×g |
Adaptor |
a 4×1×100ml Round type |
|
b 4×1×50ml Round type |
||||||
|
c 4×2×50ml
High speed round type |
||||||
|
d 4×9×10ml
High speed round type |
|
|
||||
|---|---|---|---|---|
|
Capacity：6×250ml |
250ml Bucket |
Adaptor |
a 6×1×100ml Round type |
b 6×1×50ml Round type |
|
250ml Bottle |
c 6×2×50ml High speed round type |
d 6×9×10ml High speed round type |
|
|
||||
|---|---|---|---|---|
|
Square basket rotor |
Square basket |
Adaptor |
a 4×4×50ml |
b 4×10×15ml |
|
Capacity：4×2×96 |
||||
