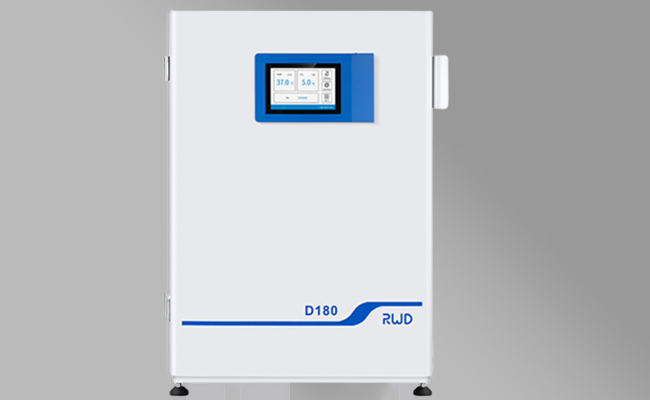

D180 CO2 INCUBATOR

D180 CO2 INCUBATOR DESCRIPTION

A well-designed air-jacketed co2 incubator with 175L capacity provides a suitable, and stable environment for cell/tissue culture. Meanwhile, an intelligent touch-screen shows 7-days performance trend graphing enables you to monitor the change of key parameters easily.

CO2 INCUBATOR DESCRIPTION

D180-P air jacket CO2 incubator is used to grow and maintain cell cultures and tissue culture, which is essential for many experiments of cultured eukaryotic cells. It is ideal for ordinary cell lines, stem cells, embryos, and primary cells.

The combination of six-side air jacket heating technology with accurate temperature, carbon dioxide concentration control system makes it more reliable. The automatic data record of 7 days and curved display, touchscreen controller enables lab personnel’s cell culture experiments effectively.

Also, the 140℃ high-temperature sterilization can eliminate all sources of microbial contamination (including heat-resistant bacillus).

Features & Benefits

OVERVIEW

The carbon dioxide cell culture incubator is an indispensable device in the fields of cancer research, stem cell research, immunology research, pharmaceutical research, and neurobiology research. It is ideal for ordinary cell lines, stem cells, embryos, and primary cells, animal cell culture.

Growing and maintaining cells can be easy, stable by controlling temperature, CO2 concentration and maintaining a high relative humidity (RH). The built-in 140℃ dry-heat sterilization program helps to prevent bacterial contamination. All the data and 7-days performance trend graphing are visible on the 7-inch touch screen, and stored data can be downloaded through USB.

ADVANTAGES

  • Precise CO2 concentration monitor

High temperature resistant infrared（IR）co2 sensor enables real-time monitoring the change of co2 level. Optional humidity probe to monitor real-time humidity changes.

  • Stable Temperature control

Six-sided air jacketed heating method with Pt1000 platinum thermistor significantly shorten the recovery time to target temperature.

  • User-friendly operation

7-inch touch screen provides complete data visibility including three core parameters (Temp. , CO2 and rH).

  • Multiple alarm system

Internal and external doors open overtime alarm. Abnormal inner cavity core parameters alarm, temperature alarm function.

Control & Range ±0.1℃, 5°C above ambient to 50°C
Temperature
Heating Method
Air jacket(direct heat)
Uniformity
±0.3℃ @ 37℃
Alarm Setting
Customized, Upper limit: (T+0.1) ~ (T+5.0); Lower limit:（T-0.1) ~ (T-5.0）
Sensor
Pt1000 Platinum thermistor
Controller
PID
Readability & Setability
0.1℃
Sterilization Method
140℃ dry heat sterilization
CO2 Concentration
Control & Range
±0.1%@5%，0-20%
Sensor
Heat-resistant infrared (IR) sensor
Inlet Pressure
1.0 bar (recommended)
Uniformity
±0.3%
Readability & Setability
0.10%
Alarm Setting
Customized, Upper limit: (C+0.1) ~ (C+1.0); Lower limit: (C-0.1) ~ (C-5.0)
Humidity
Humidity Pan Volume
~3.8 L
Display
1% RH
Shelves
Dimensions
48.7×46.1 cm
Surface Area
224.5 cm2
Number (Standard & Max)
3 ; 16
Size & Weight
Interior Volume
175 L
Interior Dimensions
51.0 (W) ×54.7 (D) ×67.5 (H) cm
Exterior Dimensions
69.5(W)×67.0(D)×97.0(H) cm
Net Weight
110 kg

Features & Benefits

Purity

Cat No. Product Description
D180-P
Air-jacketed lab CO2 incubator/cell culture incubator (Equipped with humidity display and high- temperature sterilization function), 220V-240V VAC 50/60 Hz
D181-P
Air-jacketed lab CO2 incubator/cell culture incubator (Equipped with humidity display and high- temperature sterilization function), 120V-120V VAC 50/60 Hz
  • Minimize the risk of microorganisms contamination with the 140℃ dry-heat sterilization program, which can effectively maintain the purity of the inner atmosphere.
  • The combination of HEPA (High-Efficiency Particulate Air filter) with the active air circulation system makes the inner atmosphere more uniform as well as cleaner. The HEPA filters air in the chamber every minute, which will reach the Class 100 level within 5 minutes.
  • The interior is made of copper-containing stainless steel with a round corner design that greatly resists bacteria as well as cleaning simplicity.

Stability

  • The six-sided air jacket heating method significantly reduces the time to target temperature.
  • The non-dispersive infrared sensor for carbon dioxide detection is quite accurate with a low drift rate compared with the TC sensor. It can also tolerate high temperature up to 140 ℃, therefore there is no need to remove the sensor during sterilization.

Intelligence

  • All the data and interactions including temperature, co2 concentration, operation log as well as alarm records are visible on the 7-inch touchscreen.
  • The changes inside the incubator within 7 days could be recorded automatedly and displayed in the curve. Data older than 7 days up to 6 months can be export through a USB drive.

Safety

  • Customizable alarm settings allow users to modify upper and lower alarm limits.
  • Multiple system alarms can keep the machine from an abnormal operation so that precious samples and operators are protected well.
Control & Range ±0.1℃, 5°C above ambient to 50°C
Temperature
Heating Method
Air jacket
Uniformity
±0.3℃ @ 37℃
Alarm Setting
±5°C
Sensor
Platinum thermistor
Controller
PID
Readability & Setability
0.1℃
Sterilization Method
140℃ dry heat sterilization
CO2 Concentration
Control & Range
Better than ±0.1% ; 0-20%
Sensor
Heat-resistant infrared (IR) sensor
Inlet Pressure
1.0 bar (recommended)
Uniformity
±0.3%
Readability & Setability
0.10%
Alarm Setting
±1%
Humidity
Humidity Pan Volume
~3.8 L
Display
1% RH
Shelves
Dimensions
47.0×47.0 cm
Surface Area (Standard & Max)
214. 6 cm2 ; 220.7 cm2
Number (Standard & Max)
3 ; 16
Size & Weight
Interior Volume
175 L
Interior Dimensions
51.0 (W) ×54.7 (D) ×67.5 (H) cm
Exterior Dimensions
66.0 (W) ×67.0 (D) ×97.0 (H) cm
Net Weight
110 kg (242.5 lbs)

FAQ

  • What is the highest level of co2 the chamber can achieve? Highest level is 20% and the range of CO2 concentration is 0-20%.
  • Are there any safety features on the door? First of all, there are two doors (outer and inner) and the heated inner door could minimize potential condensation to avoid contamination. Secondly, visual and buzzer alarm are provided for door open
  • How long are the leads times? We have enough stock.

Order information

Cat No. Product Description
D180-P
Air-jacketed lab CO2 incubator/cell culture incubator (Equipped with humidity display and high- temperature sterilization function), 220V-240V VAC 50/60 Hz
D181-P
Air-jacketed lab CO2 incubator/cell culture incubator (Equipped with humidity display and high- temperature sterilization function), 120V-120V VAC 50/60 Hz
