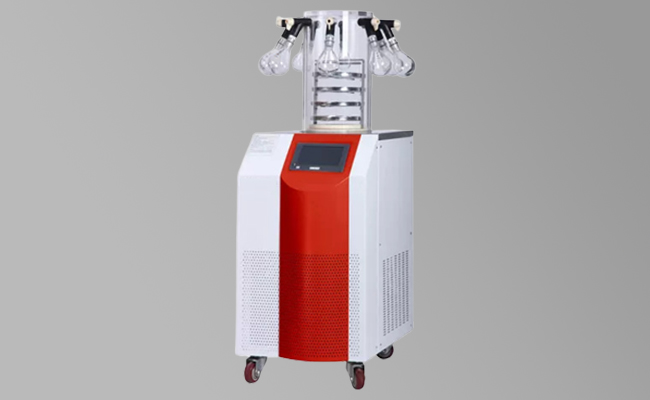

| Model | BK-FD12S(-60/-80) | BK-FD12P(-60/-80) | BK-FD12T(-60/-80) | BK-FD12PT(-60/-80) |
|---|---|---|---|---|
|
Type
|
Standard chamber
|
Standard chamber with 8 port manifold
|
Stoppering chamber
|
Stoppering
chamber with 8 port manifold |
|
Freeze Drying Area
|
0.12m²
|
0.18m²
|
0.09m²
|
|
|
Tray |
4/6(Optional)pcs
|
3pcs |
||
|
Height Between Trays
|
76/50mm
|
70mm |
||
|
Cold Trap Temperature
|
≤-60℃/-80℃(Optional)
|
|||
|
Cold Trap Capacity
|
9.3L
|
|||
|
Cold Trap Size (Dr*H)
|
Φ217*250mm
|
|||
|
Vacuum Degree
|
<10Pa
|
|||
|
Water Capture Capacity
|
4kg/24h
|
|||
|
Tray Size (D*H)
|
Φ200*20mm
|
|||
|
Freeze Drying Time
|
24h
|
|||
|
Loading Capacity/Shelf (Liquid)
|
0.3L
|
|||
|
Total Loading Capacity (Liquid)
|
1.2L
|
1.8L
|
0.9L
|
|
|
Drying Chamber Size (D*H)
|
Lower circle Φ260mm, Upper circle Φ240mm Height 450mm
|
|||
|
Can Load Vials Qty
|
Φ22mm
|
260
|
195
|
|
|
Φ16mm |
480
|
360
|
||
|
Φ12mm
|
920
|
690
|
||
|
Refrigerant
|
R600a+R290+R23
|
|||
|
Cooling System
|
Air cooling
|
|||
|
Consumption
|
-60℃: 0.9kW,-80℃: 1.5kW(Optional)
|
|||
|
Power Supply
|
220V/50Hz, 60Hz (single phase); 110V/60Hz(single phase, only for -60℃)
|
|||
|
Standard Accessory
|
-60℃ cold trap, Vacuum pump 2L/S, 8m³/h, Material tray, Material rack, PC cover (for all models); Conical-mouth flask 500ml*8pcs, Switch valve*8pcs (only for model BK-FD12P/PT) |
|||
|
Optional Function & Accessory
|
-80℃ cold trap, Electric defrost function, Nitrogen gas filling valve, Oil mist filter (for all models); 800ml wide-mouth flask(for BK-FD12P/PT) |
|||
|
External Size (W*D*H)
|
480*620*920/1370mm
|
|||
|
Package Size (W*D*H)mm/ Gross Weight |
Main Body
|
730*600*1180(80kg)
|
||
|
Drying Chamber
|
400*400*620(15kg)
|
|||
|
Vacuum Pump
|
570*240*360(22kg)
|
|||
